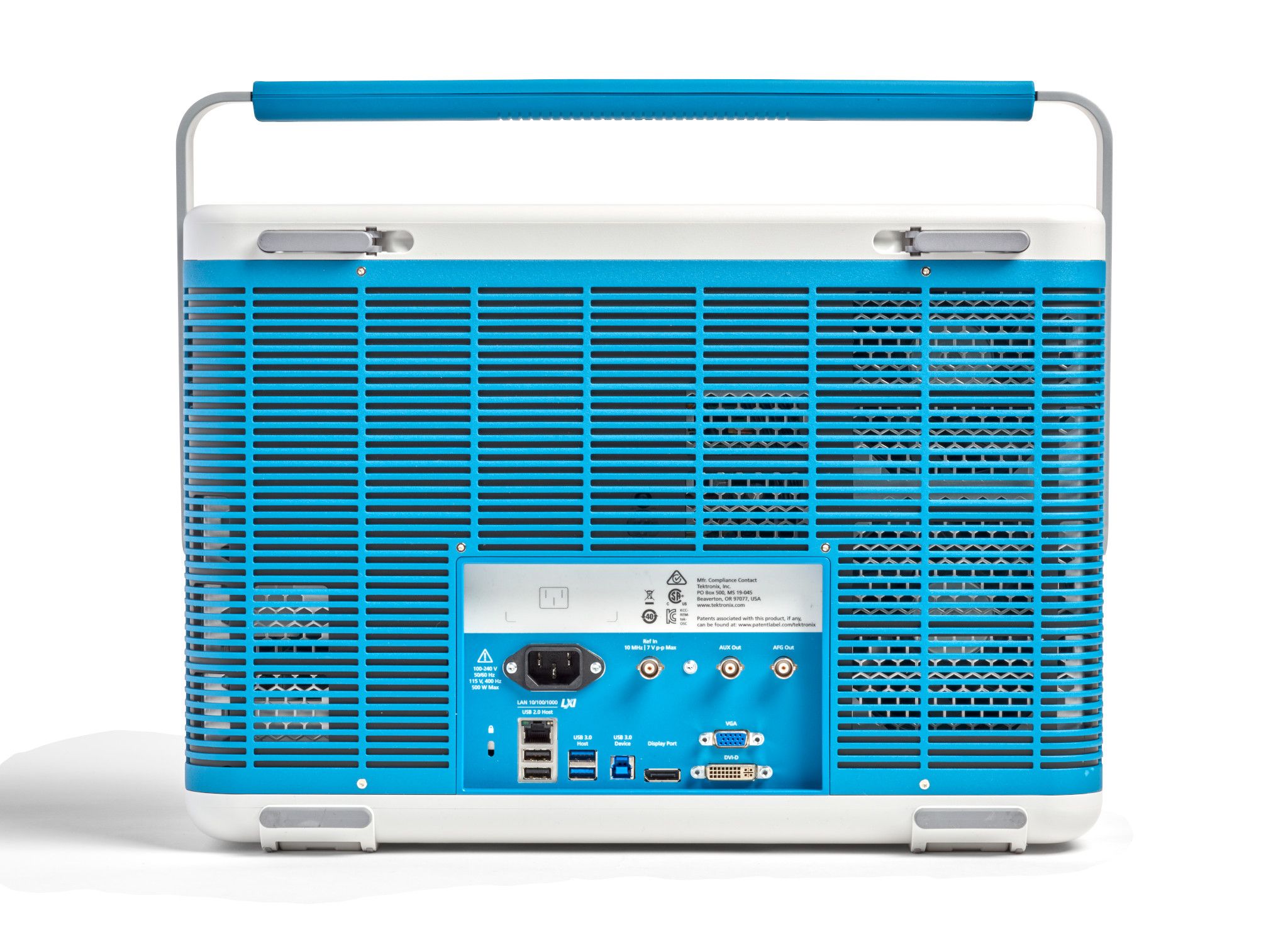

6 Series B MSO Mixed Signal Oscilloscope
Troubleshoot and validate high-speed designs with bandwidth that starts at 1 GHz and goes up to 10 GHz . Get accurate measurements with low noise and sample rate up to 50 GS/s . See more of your design with 6- and 8-channel models.
Up to 10GHz
Up to 50 GS/s
Up to 1 G
12 bits
Get to know the 6 Series B
Get to know the 6 Series B
- Performance Specifications
- A new standard in usability
- Built-in measurements and analysis
- Tackling high-speed clocks and data
- Multi-channel spectrum analysis
- From 3 V power rails to 3-phase drives
Lowest noise. More detail.
See signal details you couldn’t see before.
- Lowest input noise enabled by new TEK061 front-end ASICs
- 12-bit resolution at 5 GHz and up to 16-bit resolution at 200 MHz
- < 55 µV of noise at 1 mV/div and 1 GHz
- < 1.25 mV of noise at 50 mV/div and 10 GHz
![](/-/media/images/product-series/6-series-mso/mso68b-spectrumview.jpg?h=281&iar=0&w=500)
Synchronized multi-channel spectrum analysis
Get 4, 6 or 8 channels of spectrum analysis. Hardware digital downconverters (DDCs) in parallel with time domain signal processing unlock exciting capabilities.
- Any analog channel can be viewed as a waveform, spectrum, or both
- Plot and trigger on changes in RF frequency or magnitude
- Spectrums and time domain waveforms are synchronized to correlate RF and time domain events
- Spectrum controls such as center frequency and RBW are completely independent of time domain controls
Advanced analysis simplified

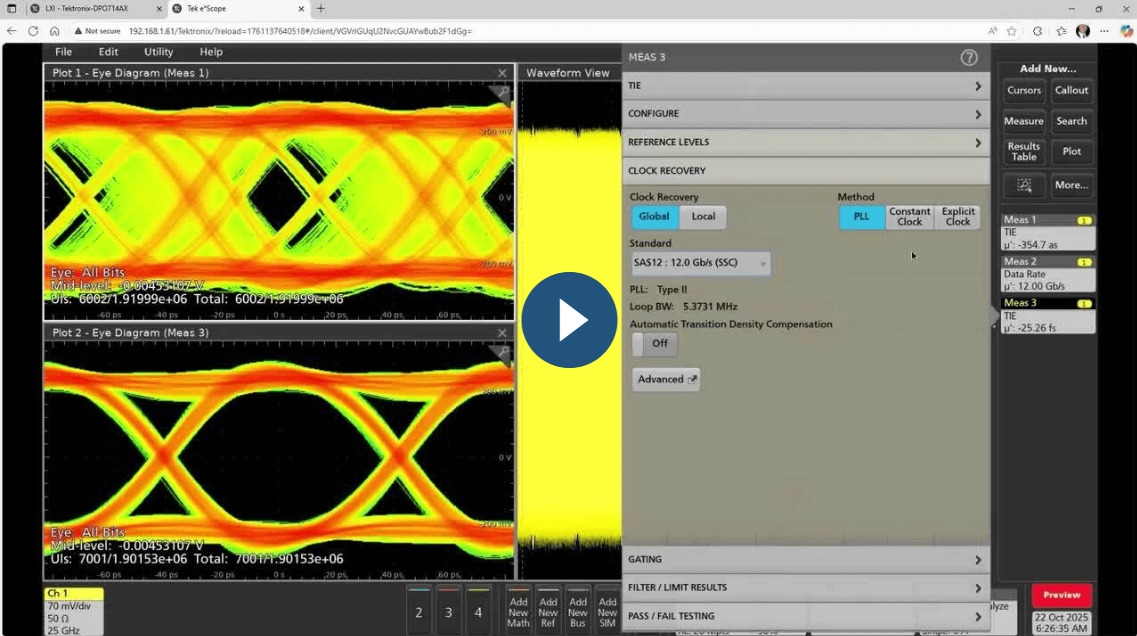

Characterize jitter on GHz clocks and serial buses with ease. Bring statistics into your everyday toolkit with integrated measurements. Use the same simple drag and drop action to add advanced and everyday measurements.
- Automated measurements and trend analysis
- Spectrum View synchronized multi-channel spectrum analysis
- Advanced jitter analysis
- Advanced power analysis
- Power rail measurements
- Memory analysis and debug
- High-speed serial compliance
- 5G NR signal analysis
![](/-/media/images/product-series/6-series-mso/mso68b_advanced-analysis-4up.jpg?h=277&iar=0&w=500)
![](/-/media/images/product-series/6-series-mso/tek-mso68b-18.jpg?h=281&iar=0&w=500)
Fidelity begins at the probe tip
With 4, 6 or 8 FlexChannel® inputs you can browse your circuits with the included 1 GHz probes. Connect high performance single-ended active probes or differential probes, or do both at once with TriMode probes. Connect a TLP058 logic probe and get 8 digital channels on any FlexChannel input to expand your system visibility.
- Built-in 1 MΩ and 50 Ω input terminations
- 1 GHz low-loading passive probe for each input, included
- TekVPI probe interfaces with 10W of probe power per channel for differential, current, power rail, and optically isolated probes
- TDP7700 Series 4, 6, 8 and 10 GHz TriMode probes -- perfect for measuring high-speed communications
Get it done
Add capabilities when you need them and for as long as you need them. Share data instantly in an integrated cloud-based workspace. All to get things done, fast.
- Comprehensive analysis options and upgrades
- Application bundles offer significant savings
- Share data seamlessly with one-button cloud storage
- Analyze waveform data on a PC, without a scope
![Tekscope](/-/media/images/product-series/tekscope-pc/ms068b_tekscope_540x360.jpg?h=360&iar=0&w=540)
![6 Series B MSO Mixed Signal Oscilloscope Specifications](/-/media/images/product-series/6-series-mso/6_series_b_mso_drawing.jpg?h=482&iar=0&w=800)
Specification Overview
Input Channels
4,6 or 8 FlexChannel inputs.
Each FlexChannel provides 1 analog signal input or 8 digital logic inputs with TLP0581 probe
Bandwidth 1
1, 2.5, 4, 6, 8, 10 GHz
Sample Rate
50 GS/s on 2 analog channels
25 GS/s on 4 analog channels
12.5 GS/s on > 4 analog channels
Record Length 1
Up to 1 Gpoints on 4 channels
Up to 500 Mpoints on > 4 channels
Signal Generator 1
13 standard waveform types, plus arbitrary
Digital Voltmeter 2
4 digit
Trigger Frequency Counter 2
8 digit
Display
15.6-inch (385 mm)
TFT color HD (1920 x 1080) resolution Capacitive (multi-touch) touchscreen
2 - Free with product registration
August 2024 firmware release offers these new features and options
Upgrades on all instruments
- Support for the new TekHSI high speed interface for much faster data transfers
- New ability to require passwords for data transfers and LAN access
New options
- New Time domain reflectometry measurements and analysis (TDR)
- New PCIe Gen 1 and Gen 2 Protocol Decode and Search capability (SRPCIE321)
Upgrades available on instruments with advanced analysis options
- Instruments with Advanced Power Measurement and Analysis (PWR) now allow settings adjustments during frequency response analysis (Bode plots and PSRR).
- Instruments with USB 3.0 Protocol Decode and Search (SRUSB3) will be able to decode USB 3.1 and 3.2 Gen 1 signals
Updated PC Software
- TekScope PC waveform analysis software supports the new TekHSI high speed interface for much faster data transfers
Already have a 6 Series? Get your update.
What's in the box?
- One TPP1000 1 GHz, low-C passive probe for each channel, with accessories
- Front cover with accessory pouch
- Power cord
- Printed Installation Manual covers safety and basic operation
- Comprehensive built-in online help
- Certificate of traceability
- 1-year warranty on the instrument and included probes

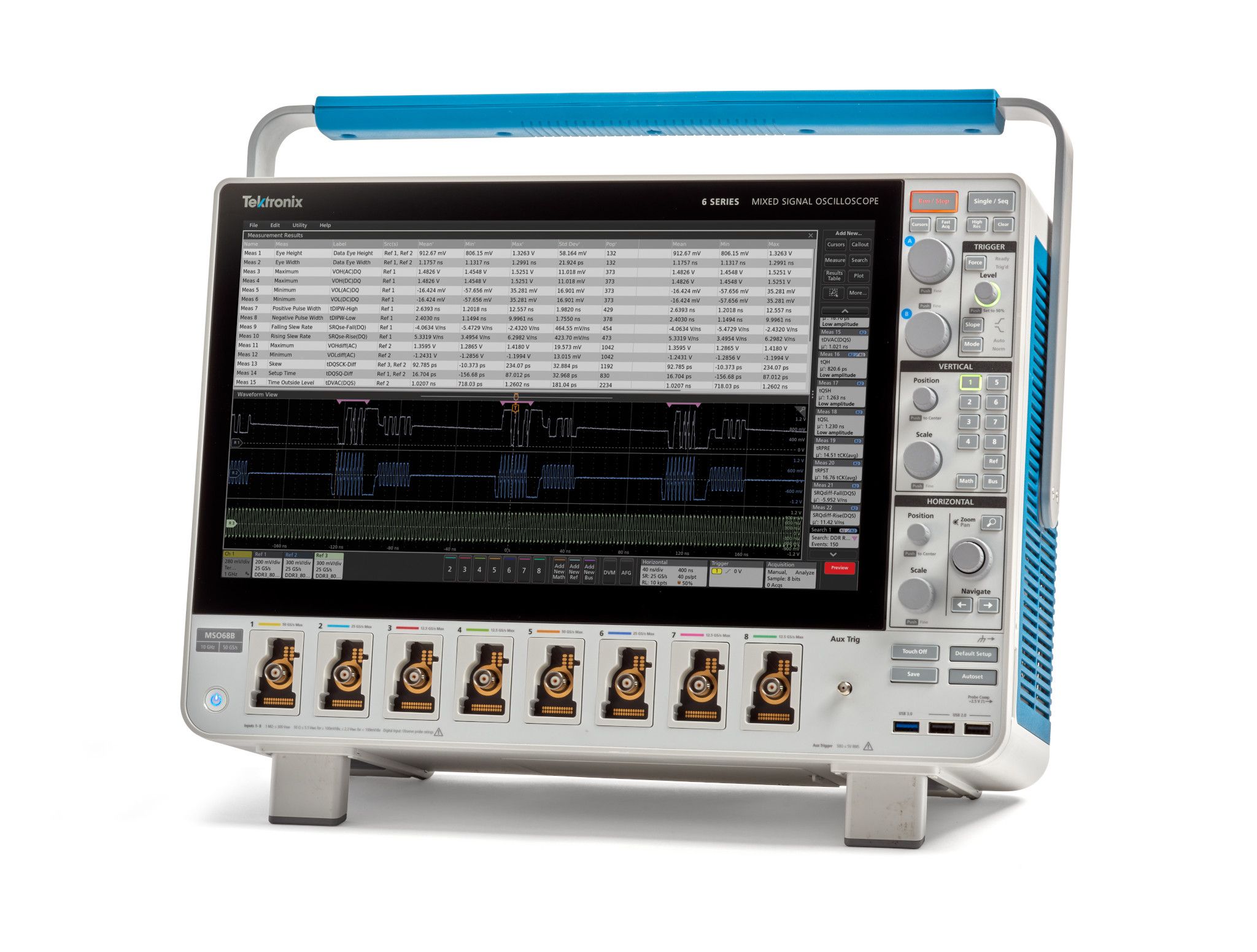

![What's in the box?](/-/media/images/product-series/6-series-mso/tek-mso68b-10-out-of-the-box/02292bd9-910f-4709-895e-95ffe65f6483.jpeg?h=407&iar=0&w=540)
Model | Analog Bandwidth | Sample Rate | Record Length | Analog Channels | Digital Channels | Function Generator Output | List Price | Configure And Quote |
---|---|---|---|---|---|---|---|---|
MSO64B | 1 GHz - 10 GHz |
Up to 50 GS/s |
62.5 M - 1 G |
4 |
Up to 32 (optional) |
1 (optional) |
US $36,400 | Configure & Quote |
MSO66B | 1 GHz - 10 GHz |
Up to 50 GS/s |
62.5 M - 1 G |
6 |
Up to 48 (optional) |
1 (optional) |
US $46,500 | Configure & Quote |
MSO68B | 1 GHz - 10 GHz |
Up to 50 GS/s |
62.5 M - 1 G |
8 |
Up to 64 (optional) |
1 (optional) |
US $59,900 | Configure & Quote |
Model | Analog Bandwidth | Sample Rate | Record Length | Analog Channels | Digital Channels | Function Generator Output | List Price | Configure And Quote |
---|---|---|---|---|---|---|---|---|
MSO64B | 1 GHz - 10 GHz |
Up to 50 GS/s |
62.5 M - 1 G |
4 |
Up to 32 (optional) |
1 (optional) |
US $36,400 | Configure & Quote |
MSO66B | 1 GHz - 10 GHz |
Up to 50 GS/s |
62.5 M - 1 G |
6 |
Up to 48 (optional) |
1 (optional) |
US $46,500 | Configure & Quote |
MSO68B | 1 GHz - 10 GHz |
Up to 50 GS/s |
62.5 M - 1 G |
8 |
Up to 64 (optional) |
1 (optional) |
US $59,900 | Configure & Quote |
Tektronix 6 Series MSO |
Tektronix 5 Series MSO |
Keysight MXR-Series |
Rohde & Schwarz RTP Series |
Rohde & Schwarz RTO Series |
LeCroy WavePro HD |
|
---|---|---|---|---|---|---|
Detailed Comparison | -- | -- | Fact Sheet | Fact Sheet | Fact Sheet | Fact Sheet |
Number of Analog Channels | 4, 6 or 8 | 4, 6 or 8 | 4 or 8 | 4 | 2 or 4 | 4 |
Bandwidth Ranges | 1 GHz to 10 GHz | 350 MHz to 2 GHz | 500 MHz to 6 GHz | 4 GHz to 16 GHz | 600 MHz to 6 GHz | 2.5 GHz to 8 GHz |
Max Bandwidth on 4 channels | 10 GHz | 2 GHz | 6 GHz | 8 GHz | 4 GHz | 4 GHz |
Max Bandwidth on 8 channels | 5 GHz | 2 GHz | 6 GHz | -- | -- | -- |
Upgradeable Bandwidth | Yes | Yes | Yes | Yes | Yes | No |
Channel Input Impedance | 50 Ω, 1 MΩ | 50 Ω, 1 MΩ | 50 Ω, 1 MΩ | 50 Ω | 50 Ω, 1 MΩ | 50 Ω, 1 MΩ |
Analog Sample Rate (on 4 Channels) | Up to 25 GS/s | Up to 6.25 GS/s | Up to 16 GS/s | Up to 20 GS/s | Up to 20 GS/s | Up to 10 GS/s |
Analog Sample Rate (on 8 Channels) | Up to 12.5 GS/s | Up to 6.25 GS/s | Up to 16 GS/s | -- | -- | -- |
Standard Record Length (on all channels) | 62.5 Mpts | 62.5 Mpts | 200 Mpts | 50 Mpts | 50 Mpts | 50 Mpts |
Optional Record Length | 4 Ch: 1 Gpts >4 Ch: 500 Mpts |
500 Mpts | 400 Mpts | 1 Gpts | 1 Gpts | 2.5 Gpts |
Integrated Arbitrary/Function Generator | 50 MHz (opt.) | 50 MHz (opt.) | 50 MHz (opt.) | None | 100 MHz (opt.) | None |
Digital / Logic Analysis Channels (MSO) | Up to 64 (opt.) | Up to 64 (opt.) | 16 (opt.) | 16 (opt.) | 16 (opt.) | 16 (opt.) |
Waveform Capture Rate (wfms / Sec) | >500,000 | >500,000 | 200,000 | 950,000 | >1,000,000 | Not Available |
RMS Noise, 1mV/div, at 1 GHz, 4GHz, 10GHz | 54 µV, 93 µV, 201 µV | 254 µV, NA, NA | 73 µV, 132 µV, NA | NA, 270 µV, NA | 100 µV, 220 µV, NA | NA, 228 µV, NA |
ADC Resolution | 12 bits | 12 bits | 10 bits | 8 bits | 8 bits | 12 bits |
Operating System | Embedded OS Windows 10 (opt.) |
Embedded OS Windows 10 (opt.) |
Windows 10 | Windows 10 | Windows 7 | Windows 10 |
Standard Probes | 1 GHz Passive 3.9 pF loading |
Up to 1 GHz Passive 3.9 pF loading |
500 MHz Passive 9.5 pF loading |
None | 500 MHz Passive 10 pF loading |
500 MHz Passive 10 pF loading |
Standard Warranty | 1 year | 3 years | 1 years | 3 years | 3 years | 3 years |

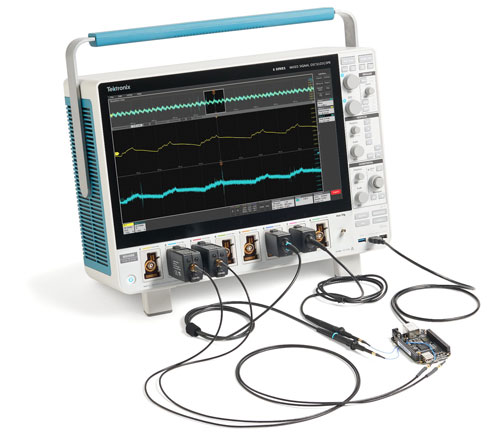

![](/-/media/images/product-series/6-series-mso/tek-tpr4000-01b-mso68b.jpg?h=435&iar=0&w=500)
Power Integrity and Power Management
Today’s boards can have 20 or more power rails. Many are less than 3 V and most have noise limits. Accurate noise measurements demand special attention.
Highlights
- Low measurement system noise
- Compatible with low-noise TPR Series power-rail probes
- Pairs with low-noise TPR Series power-rail probes
- Decoding options for SVID and SPMI
- Impedance measurements
Getting Started with Power Rail Measurements Application Note
Jitter Analysis
Clocks are the heart of every embedded system and digital communication link. Jitter and other clock distortion can impact system operation, and getting to the root cause can be challenging without the right analysis tools.
Highlights
- Standard phase noise, TIE, and frequency plots and histograms
- Optional advanced analysis with jitter decomposition and clock recovery
![](/-/media/images/product-series/6-series-mso/6-series_jitter_analysis_config/mso68b_jitter.jpg?h=281&iar=0&w=500)

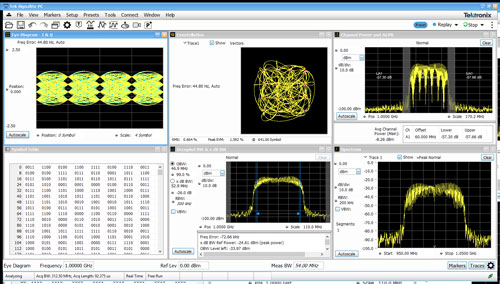

![6 Series B MSO Vector Signal Analysis](/-/media/images/product-series/6-series-mso/signalvu-pc-on-6-series.jpg?h=284&iar=0&w=500)
Vector Signal Analysis
Conduct advanced wideband RF analysis with up to 2 GHz analysis bandwidth with SignalVu-PC Vector Signal Analysis software.
- RF measurements
- Modulation analysis
- 5G NR measurements
- Error vector magnitude

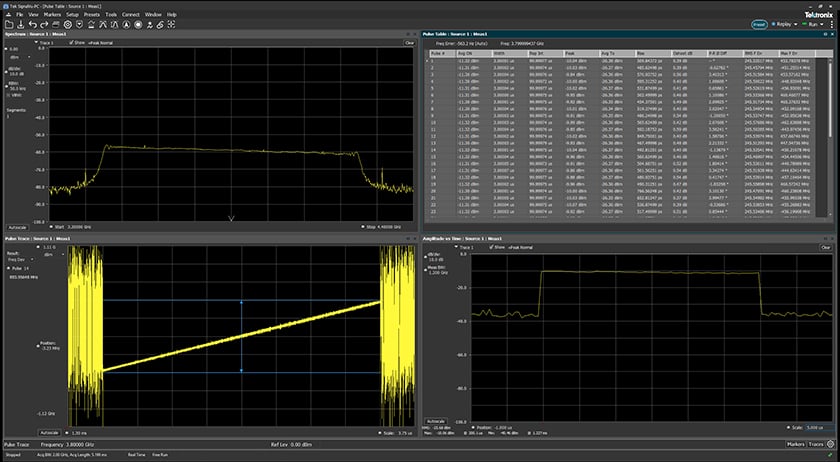

- Pulsed RF measurements
Watch the Vector Signal Analysis Overview video
Get the details on SignalVu-PC Vector Signal Analysis Software
Serial Standards Compliance Testing
High speed digital interfaces rely on rigorous test procedures to ensure reliability and interoperability. Automated compliance testing software manages the whole testing process -- setup, making measurements, checking against limits, and generating detailed reports.
Highlights
- Ethernet 10/100/1000BASE-T, NBASE-T and XGBT
- Automotive Ethernet 10/100/1000BASE-T1
- MIPI D-PHY 1.2
- Automotive Ethernet 100/1000BASE-T1
![](/-/media/images/product-series/6-series-mso/1000base-t1_pic4_6-series-b.jpg?h=313&iar=0&w=500)
![Electromagnetic Interference Troubleshooting](/-/media/images/product-series/6-series-mso/figc-abient-vs-dut.jpg?h=296&iar=0&w=540)
Electromagnetic Interference (EMI) Troubleshooting
Each analog channel on the 6 Series MSO can show you a time domain waveform, a spectrum, or both. Time and frequency plots are synchronized to help you quickly determine which signals are the victims and which ones are the aggressors.
EMI Troubleshooting with the Latest-Generation Oscilloscopes3-Phase Inverters, Motors and Drives
The Inverters, Motors and Drives Analysis package makes it easy to perform stable, reliable power measurements on 3-phase PWM systems.
Highlights
- Up to 8 analog input channels
- 3-phase wye, delta, and single-phase wiring configurations
- Comprehensive power and harmonics measurements
- Mechanical measurements
- DQ0 measurements
![](/-/media/images/product-series/6-series-mso/mso68b_imda.jpg?h=281&iar=0&w=500)
![Remote Control and Automation](/-/media/images/product-series/4-series-mso/remotecontrol.jpg?h=304&iar=0&w=540)
Remote Control and Automation
Get fast, repeatable results and access your data from anywhere. Automate your testing with confidence.
- TekScope PC Software offers the same analysis capability available on Tektronix oscilloscopes, on your PC. It supports the new TekHSI high speed interface for much faster data transfers to your PC
- KickStart Software simplifies data capture and logging. Supports function generators, power supplies, SMUs and more
- Built-in *eScope or Windows Remote Desktop let you control your scope over any LAN
- Comprehensive, fully-supported programming interfaces enable development of robust custom software
- Discover test automation resources including the free Python Drivers Package
Learn about tools for remote work and collaboration
Bundles
Individual OptionsStarter
US $2,710
Subscription
US $6,490
Perpetual
Select license option to continue

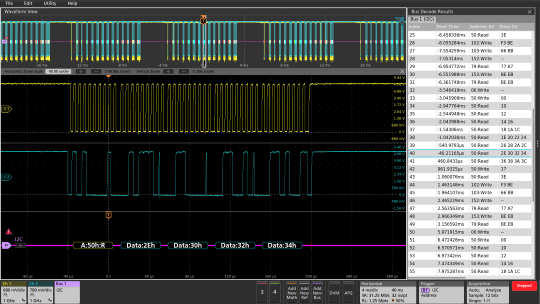

- Serial trigger, decode, search and event table analysis on I2C, SPI, RS-232/422/485/UART buses
- Integrated Arbitrary Function Generator with 13 predefined waveform types as well as arbitrary waveforms up to 50 MHz
Learn about maintenance for software and licenses
Average Savings of 49%!
Pro
- Includes Starter Bundle
- Adds 250M/ch record length
- PLUS: pick one of the following bundles
Purchase a Pro or Ultimate software bundle and get 12 months of maintenance included.
Average Savings of 72%!
PLUS: Choose a bundle
Power
US $8,650
Subscription
US $21,600
Perpetual
- Advanced Power Analysis
- Digital Power Management Analysis
- Double pulse testing
- Inverter & Motor Drive Analysis with DQ0 and mechanical measurements
- SPMI decoding
- SVID decoding
- TDR measurements
Select license option to continue
Compliance
US $6,490
Subscription
US $16,000
Perpetual
- 10/100/100BASE-T Ethernet with Multi-lane*
- 2.5G/5G/10G BASE-T Ethernet*
- 10BASE-T1L Industrial Ethernet*
- USB2.0*
- MIPI D-PHY 1.2*
- MIPI D-PHY 2.1*
- DDR3*
Select license option to continue
Automotive
US $6,760
Subscription
US $17,100
Perpetual
- Jitter analysis
- PAM3 analysis*
- Signal separation*
- 100BASE-T1 and 1000BASE-T1 compliance
- Multi-gigabit Automotive Ethernet compliance
- 10BASE-T1S compliance
- MIPI D-PHY compliance
- Inverter & motor drive analysis
- Double pulse testing
- 100BASE-T1 decoding
- CAN, CAN FD,
CAN XL decoding - CXPI decoding
- FlexRay decoding
- I3C decoding
- LIN decoding
- PSI5 decoding
- SENT decoding
Select license option to continue
MilGov
US $6,760
Subscription
US $16,600
Perpetual
- Jitter Analysis
- Mask/Limit Testing
- Serial T/D
- Mil-Std-1553
- ARINC429
- Spacewire
- NRZ
Select license option to continue
Serial Decode
US $6,760
Subscription
US $16,800
Perpetual
- 1-Wire
- Audio
- CAN, CAN FD,
CAN XL - CXPI
- EtherCAT
- Ethernet
- eSPI
- eUSB
- FlexRay
- I3C
- Manchester
- LIN
- MDIO
- MIPI C-PHY
- MIPI D-PHY
- NFC
- NRZ
- PCIe Gen 1, 2, 3
- SDLC
- SMBus
- SPMI
- SVID
- USB 2.0
- USB 3.0
Select license option to continue
Signal Integrity
US $6,760
Subscription
US $16,800
Perpetual
- Jitter Analysis
- PAM3 Analysis*
- LVDS Debug*
- DDR3 Debug
- Mask/Limit Testing
- User-Defined Filters
Select license option to continue
Ultimate
US $13,000
Subscription
US $31,900
Perpetual
Select license option to continue
- Includes Starter bundle and all Pro bundles
- PLUS: 1 G/ch record length, Spectrum View RF vs. Time waveforms, Extended Spectrum View capture bandwidth, Video Trig
Purchase a Pro or Ultimate software bundle and get 12 months of maintenance included.
Average Savings of 86%!
* Indicates features that require 6-WIN
Access Digital Channels
Upgrade | Description | Purchasing Details |
---|---|---|
TLP058 Logic Probe | Each probe accesses 8 digital channels on any FlexChannel input | Request a quote on this probe |
Add Instrument Functions
Upgrade | Description | Purchasing Details |
---|---|---|
SUP6-AFG | Add arbitrary function generator | Request trial license Request a quote |
SUP6-DVM | Add digital voltmeter / trigger frequency counter | Software upgrade license file provided upon registration. Register now. |
SUP6-RL-1 | Extend record length to 125 Mpts / channel | Request trial license Request a quote |
SUP6-RL-1T2 | Extent record length from 125 Mpts/channel to 250 Mpts/channel | Request trial license Request a quote |
SUP6-RL-2 | Extend record length to 250 Mpts / channel | Request trial license Request a quote |
SUP6-RL-3 | Extend record length from 62.5 M/ch to 500 M/ch | Request trial license Request a quote |
SUP6-RL-1T3 | Extend record length from 125 M/ch to 500 M/ch | Request trial license Request a quote |
SUP6-RL-2T3 | Extend record length from 250 M/ch to 500 M/ch | Request trial license Request a quote |
SUP6-RL-4 | Extend record length from 62.5 M/ch to 1 G/ch | Request trial license Request a quote |
SUP6-RL-1T4 | Extend record length from 125 M/ch to 1 G/ch | Request trial license Request a quote |
SUP6-RL-2T4 | Extend record length from 250 M/ch to 1 G/ch | Request trial license Request a quote |
SUP6-RL-3T4 | Extend record length from 500 M/ch to 1 G/ch | Request trial license Request a quote |
SUP6B-LNX | Expansion solid state drive with embedded operating system | No trial available Request a quote |
SUP6B-WIN | Expansion solid state drive with Windows 10 license | No trial available Request a quote |
Add Protocol Analysis
Upgrade | Description | Purchasing Details |
---|---|---|
SUP6-RFNFC | NFC wireless protocol decoding and search | Request trial license Request a quote |
SUP6-SR8B10B | 8b10b Protocol Decoder and Search | Request trial license Request a quote |
SUP6-SRAERO | Aerospace serial triggering and analysis (MIL-STD-1553, ARINC429) | Request trial license Request a quote |
SUP6-SRAUDIO | Audio serial triggering and analysis (I 2S, LJ, RJ, TDM) | Request trial license Request a quote |
SUP6-SRAUTO | Automotive serial triggering and analysis (CAN, CAN FD, CAN XL, LIN, FlexRay) | Request trial license Request a quote |
SUP6-SRAUTOEN1 | 100BASE-T1 automotive Ethernet protocol decode software | Request trial license Request a quote |
SUP6-SRAUTOSEN | Automotive sensor serial triggering and analysis (SENT) | Request trial license Request a quote |
SUP6-SRCOMP | Computer serial triggering and analysis (RS-232/422/485/UART) | Request trial license Request a quote |
SUP6-SRCPHY | MIPI C-PHY protocol decoding and analysis | Request trial license Request a quote |
SUP6-SRETHERCAT | EtherCAT protocol decoding and analysis | Request trial license Request a quote |
SUP6-SRCXPI | CXPI protocol decoding and analysis | Request trial license Request a quote |
SUP6-SRDPHY | MIPI D-PHY 1.2 (CSI-2, DSI-1) decoding and analysis | Request trial license Request a quote |
SUP6-SREMBD | Embedded serial triggering and analysis (I 2C, SPI) | Request trial license Request a quote |
SUP6-SRENET | Ethernet serial triggering and analysis (10Base-T, 100Base-TX) | Request trial license Request a quote |
SUP6-SRESPI | eSPI protocol decoding and analysis | Request trial license Request a quote |
SUP6-SREUSB2 | eUSB2 protocol decoding and analysis | Request trial license Request a quote |
SUP6-SRI3C | MIPI I3C decoding and analysis | Request trial license Request a quote |
SUP6-SRMANCH | Manchester protocol decoding and analysis | Request trial license Request a quote |
SUP6-SRMDIO | MDIO protocol decoding and analysis | Request trial license Request a quote |
SUP6-SRNRZ | NRZ Protocol Decoder and Search | Request trial license Request a quote |
SUP6-SRONEWIRE | 1-Wire protocol decoding and analysis | Request trial license Request a quote |
SUP6-SRPCIE321 | PCIe Gen 1, 2 and 3 protocol decoding and analysis | Request trial license Request a quote |
SUP6-SRPM | Power Management serial triggering and analysis (SPMI) | Request trial license Request a quote |
SUP6-SRPSI5 | PSI5 serial decode and analysis | Request trial license Request a quote |
SUP6-SRSDLC | Synchronous Data Link Control protocol decoding and analysis | Request trial license Request a quote |
SUP6-SRSMBUS | SMBus protocol decoding and analysis | Request trial license Request a quote |
SUP6-SRSPACEWIRE | SpaceWire protocol decoding and analysis | Request trial license Request a quote |
SUP6-SRSVID | SVID protocol decoding and analysis | Request trial license Request a quote |
SUP6-SRUSB2 | USB 2.0 serial bus triggering and analysis (LS, FS, HS) (≥ 1 GHz model recommended for HS) | Request trial license Request a quote |
SUP6-SRUSB3 | USB 3.x Protocol Decode and Search | Request trial license Request a quote |
Add Serial Compliance Testing
Upgrade | Description | Purchasing Details |
---|---|---|
SUP6-AUTOEN-BND | Automotive Ethernet Compliance, Signal Separation, PAM3 Analysis, 100BASE-T1 Decode software | Request trial license Request a quote |
SUP6-AUTOEN-SS | Signal Separation Solution (Min BW 1 GHz) using TekExpress Automation Platform | Request trial license Request a quote |
SUP6-CMINDUEN10 | Industrial Ethernet (10Base-T1L Long reach) automated compliance test solution | Request trial license Request a quote |
SUP6-PAM3 | PAM3 Automated Compliance Solution (Min BW 1 GHz) using TekExpress Automation Platform | Request trial license Request a quote |
SUP6-CMAUTOEN | Automotive Ethernet (100Base-T1 and 1000BASE-T1) automated compliance test solution | Request trial license Request a quote |
SUP6-CMAUTOEN10 | Automotive Ethernet (10BASE-T1S Short Reach) automated compliance test solution | Request trial license Request a quote |
SUP6-CMAUTOEN10G | Automotive Ethernet (Multi-gigabit) automated compliance test solution | |
SUP6-CMCPHY20 | MIPI C-PHY 2.0 Tx automated conformance test solution (requires option 6-DJA) | Request trial license Request a quote |
SUP6-CMUSB2 | USB 2.0 automated pre-compliance test solution | Request trial license Request a quote |
SUP6-CMENET | Ethernet (10/100/1000BASE-T) compliance test solution | Request trial license Request a quote |
SUP6-CMENETML | Multilane Ethernet (10BASE-T, 100BASE-T, 1000BASE-T) automated compliance testing for 6 Series MSO, requires 6-CMENET and 6-WIN | Request trial license Request a quote |
SUP6-CMDPHY | MIPI D-PHY 1.2 compliance test solution | Request trial license Request a quote |
SUP6-CMDPHY21 | MIPI D-PHY 2.1 test automation software. Requires 6-DJA and 6-WIN | Request trial license Request a quote |
SUP6-CMDPHY21UP | MIPI D-PHY 2.1 test automation software, upgrade from D-PHY 1.2 | Request trial license Request a quote |
SUP6-CMNBASET | Ethernet (2.5/5GBASE-T) compliance test solution | Request trial license Request a quote |
SUP6-CMXGBT | Ethernet (10GBASE-T) compliance test solution | Request trial license Request a quote |
SUP6-DBLVDS | Automated LVDS test solution for 6 Series MSO oscilloscopes | Request trial license Request a quote |
Add Advanced Analysis
Upgrade | Description | Purchasing Details |
---|---|---|
SUP6-DPM | Digital power management analysis software | Request trial license Request a quote |
SUP6-DJA | Advanced jitter and eye analysis | Request trial license Request a quote |
SUP6B-IMDA | Inverters, motors and drives analysis | Request trial license Request a quote |
SUP6B-IMDA-DQ0 | DQ0 analysis for IMDA | Request trial license Request a quote |
SUP6B-IMDA-MECH | Mechanical measurements for Inverters, Motors and Drives | Request trial license Request a quote |
SUP6-MTM | Mask and limit testing | Request trial license Request a quote |
SUP6-PWR | Power analysis | Request trial license Request a quote |
SUP6-SV-BW-1 | Increase Spectrum View Capture Bandwidth to 2 GHz | Request trial license Request a quote |
SUP6-SV-RFVT | Spectrum View RF versus time analysis and trigger | Request trial license Request a quote |
SUP6-TDR | Time domain reflectometry TDR measurements and analysis | Request trial license Request a quote |
SUP6-UDFLT | User-defined filter creation tool | Request trial license Request a quote |
SUP6-VID | Analog video trigger (NTSC, PAL, SECAM) | Request trial license Request a quote |
SUP6-WBG-DPT | Wide bandgap (SiC/GaN) double pulse test application | Request trial license Request a quote |
Upgrade Bandwidth
Upgrade | Description | Purchasing Details |
---|---|---|
SUP6B-BW4 | Bandwidth upgrade for 6 Series B MSO with 4 FlexChannel inputs. See datasheet for options. | |
SUP6B-BW6 | Bandwidth upgrade for 6 Series B MSO with 6 FlexChannel inputs. See datasheet for options. | |
SUP6B-BW8 | Bandwidth upgrade for 6 Series B MSO with 8 FlexChannel inputs. See datasheet for options. |
Add Memory Debug and Compliance
Upgrade | Description | Purchasing Details |
---|---|---|
SUP6-DBDDR3 | DDR3 memory debug solution | Request trial license Request a quote |
SUP6-CMDDR3 | DDR3 / LPDDR3 Compliance Test | Request trial license Request a quote |
Datasheet Link | Probe | Description | Configure and Quote |
---|---|---|---|
View Datasheet | TCP0020 | Probe, AC/DC Current; 20 Amp; 50 MHz BW; TekVPI Interface; Certificate of Traceable Calibration Standard | Configure & Quote |
View Datasheet | TCP0030A | Probe, AC/DC Current; 30 Amp DC, DC TO 120 MHZ; with TekVPI Interface; Certificate of Traceable Calibration Standard | Configure & Quote |
View Datasheet | TCP0150 | Current Probe: 20 MHz, 5 mA to 212 A, AC/DC, TekVPI | Configure & Quote |
View Datasheet | TCP312A | Probe, AC/DC Current; 30 Amp DC, DC-100MHZ, Certificate of Traceable Calibration Standard | Configure & Quote |
View Datasheet | TCPA300 | Current Probe: 100 MHz, Amplifier (Requires Probe) | Configure & Quote |
Datasheet Link | Probe | Description | Configure and Quote |
---|---|---|---|
View Datasheet | TDP0500 | Differential Probe: 500 MHz, 5X/50X, +/- 42V, TekVPI | Configure & Quote |
View Datasheet | TDP1000 | Differential Probe: 1 GHz, 5X/50X, +/- 42V, TekVPI | Configure & Quote |
View Datasheet | THDP0100 | Differential PROBE; 100 MHZ TekVPI DIFFERENTIAL HIGH VOLTAGE PROBE | Configure & Quote |
View Datasheet | THDP0200 | Differential PROBE; 200 MHZ TekVPI DIFFERENTIAL HIGH VOLTAGE PROBE | Configure & Quote |
View Datasheet | TMDP0200 | Differential PROBE; 200 MHZ TekVPI DIFFERENTIAL MEDIUM VOLTAGE PROBE;TMPD0200 | Configure & Quote |
Datasheet Link | Probe | Description | Configure and Quote |
---|---|---|---|
View Datasheet | TPP0850 | High Voltage Probe: 800 MHz, 50X, 2.5 kV, Single-ended, TekVPI | Configure & Quote |
Datasheet Link | Probe | Description | Configure and Quote |
---|---|---|---|
View Datasheet | TIVP02 | IsoVu Gen. 2 optically isolated differential probe, 200 MHz, TekVPI, 2 m cable, includes 10X (TIVPMX10X) tip | Configure & Quote |
View Datasheet | TIVP02L | IsoVu Gen. 2 optically isolated differential probe, 200 MHz, TekVPI, 10 m cable, includes 10X (TIVPMX10X) tip | Configure & Quote |
View Datasheet | TIVP05 | IsoVu Gen. 2 optically isolated differential probe, 500 MHz, TekVPI, 2 m cable, includes 10X (TIVPMX10X) tip | Configure & Quote |
View Datasheet | TIVP05L | IsoVu Gen. 2 optically isolated differential probe, 500 MHz, TekVPI, 10 m cable, includes 10X (TIVPMX10X) tip | Configure & Quote |
View Datasheet | TIVP1 | IsoVu Gen. 2 optically isolated differential probe, 1 GHz, TekVPI, 2 m cable, includes 10X (TIVPMX10X) tip | Configure & Quote |
View Datasheet | TIVP1L | IsoVu Gen. 2 optically isolated differential probe, 1 GHz, TekVPI, 10 m cable, includes 10X (TIVPMX10X) tip | Configure & Quote |
Datasheet Link | Probe | Description | Configure and Quote |
---|---|---|---|
TLP058 | 8 channel general purpose logic probe for 5 and 6 Series MSO oscilloscopes. Includes accessory kit. | Configure & Quote |
Datasheet Link | Probe | Description | Configure and Quote |
---|---|---|---|
View Datasheet | TDP1500 | Differential Probe: 1.5 GHz, 1X/10X, +/-8.5V, TekVPI | Configure & Quote |
View Datasheet | TDP3500 | Differential Probe: 3.5 GHz, 5X, +/- 2V, TekVPI | Configure & Quote |
View Datasheet | TDP4000 | 4 GHz, Differential Probe with TekVPI interface | Configure & Quote |
View Datasheet | TDP7704 | 4 GHz, TriMode Probe with TekFlex connector, TekVPI+ interface | Configure & Quote |
View Datasheet | TDP7706 | 6 GHz, TriMode Probe with TekFlex connector, TekVPI+ interface | Configure & Quote |
View Datasheet | TDP7708 | 8 GHz, TriMode Probe with TekFlex connector, TekVPI+ interface | Configure & Quote |
View Datasheet | TDP7710 | 10 GHz, TriMode Probe with TekFlex connector, TekVPI+ interface | Configure & Quote |
Datasheet Link | Probe | Description | Configure and Quote |
---|---|---|---|
View Datasheet | TAP1500 | Active Probe: 1.5 GHz, 10X, Single-ended, TekVPI | Configure & Quote |
View Datasheet | TAP2500 | Active Probe: 2.5 GHz, 10X, Single-ended, TekVPI | Configure & Quote |
View Datasheet | TAP3500 | Active Probe: 3.5 GHz, 10X, Single-ended, TekVPI | Configure & Quote |
View Datasheet | TAP4000 | 4 GHz, Single Ended Probe with TekVPI interface | Configure & Quote |
Datasheet Link | Probe | Description | Configure and Quote |
---|---|---|---|
View Datasheet | TPP0502 | Passive Probe: 500 MHz, 2X, TekVPI | Configure & Quote |
View Datasheet | TPP1000 | Passive Probe: 1 GHz, 10X, TekVPI | Configure & Quote |
Datasheet Link | Probe | Description | Configure and Quote |
---|---|---|---|
View Datasheet | TPR1000 | 1 GHz, Single-Ended TekVPI Power-Rail Probe with TPR4KIT Standard Accessory Kit | Configure & Quote |
View Datasheet | TPR4000 | 4 GHz, Single-Ended TekVPI Power-Rail Probe with TPR4KIT Standard Accessory Kit | Configure & Quote |
Datasheet | Accessory | Description |
---|---|---|
HC5 | Hard transit case for the 5 and 6 Series MSO | |
RM5 | Rackmount kit for the 5 and 6 Series MSO |
Tektronix offers a range of calibration and warranty extension plans for purchase with your instrument to protect and maintain its performance over the years. With benefits from priority service to OEM expert maintenance to accident protection, invest now to avoid unplanned downtime and expense. Talk to your sales rep about adding a service plan to your instrument purchase.
![Tektronix calibration warranty and extension plans](/-/media/calibration-services/calibration-warranty-extension-plans.jpg?h=334&iar=0&w=500)
Service Plan Feature |
Total Protection (Opt. T3, T5) |
Tek Care (Opt. R3, R5) |
---|---|---|
Extension of factory warranty |
![]() |
![]() |
Protection from manufacturer defects |
![]() |
![]() |
Free factory certified calibration with repair (if necessary) |
![]() |
![]() |
Free in-country shipping |
![]() |
![]() |
Priority on-bench service |
![]() |
|
Coverage of user-caused EOS and ESD damage |
![]() |
|
Coverage from accidental damage |
![]() |
|
Coverage from normal wear and tear |
![]() |
Calibration Features: |
Z540 Calibration1 |
ISO 17025 Compliant1 |
ISO 17025 Accredited |
---|---|---|---|
Certificate of calibration and calibration label designed to meet audit requirements |
![]() |
![]() |
![]() |
Firmware updates, if applicable, along with safety and reliability updates ² |
![]() |
![]() |
![]() |
OEM procedures for measurements ² |
![]() |
![]() |
![]() |
Test data | Optional |
![]() |
![]() |
Calibration record retention |
![]() |
![]() |
![]() |
Traceability |
![]() |
![]() |
![]() |
Uncertainty analysis |
![]() |
![]() |
|
Independent verification by a ISO/IEC accredited organization (with logo on certificate) |
![]() |
Product/Option |
Description |
---|---|
Tektronix Opt. C3 | Calibration service 3 years. C3 provides for 2 calibration events during 3 years after shipment. Includes traceable calibration or functional verification where applicable, for recommended calibrations. Coverage includes the initial calibration plus 2-years calibration coverage. |
Tektronix Opt. C5 | Calibration service 5 years. C5 provides for 4 calibration events during 5 years after shipment. Includes traceable calibration or functional verification where applicable, for recommended calibrations. Coverage includes the initial calibration plus 4-years calibration coverage. |
1 May be ISO 9001 in specific locations.
2 Standard with factory certified service.
Some limits apply, see program terms for details.
Need to Calibrate More than Just Your 6 Series?
Tektronix is a leading accredited calibration services provider for all brands of electronic test and measurement equipment, servicing more than 140,000 models from 9,000 manufacturers. With 100+ labs worldwide, Tektronix serves as your single global partner delivering tailored calibration programs with OEM quality at a market price. Onsite, local pickup and delivery, and other options available.
![Tektronix Calibration Services](/-/media/calibration-services/tektronix-multibrand-calibration-services_500x268.jpg)
